a font stored as inline constant data (in ROM) More...

#include <graphics.h>

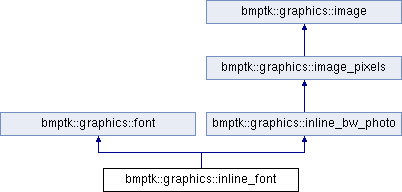

Inheritance diagram for bmptk::graphics::inline_font:

Public Member Functions
	inline_font (bool fixed, const vector char_size, const int start, const vector size, const unsigned char data)
	instantiate an inline font

bool	has (char c) const
	report whether the font has a photo for char c

vector	char_size (char c) const
	report the size of the photo for char c

bool	read (char c, const vector p) const
	read one pixel, return true iff it is foreground

Public Member Functions inherited from bmptk::graphics::font
	font (bool fixed, const vector char_size)
	create a font, specify its fixedness and character size

Public Member Functions inherited from bmptk::graphics::inline_bw_photo
bool	bool_read (const vector p) const
	read one pixel, return bool

	inline_bw_photo (const vector size, const unsigned char *data)
	create an inline_bw_photo object

Public Member Functions inherited from bmptk::graphics::image_pixels
	image_pixels (vector size)
	constructor, specify the size

vector	size_get () const
	get the size of the picture

bool	is_valid (const vector p) const
	report whether p is within the image

virtual void	draw (frame &frame, const vector position=vector::origin()) const

color	read (const vector p) const
	read one pixel, address specified by vector

Public Member Functions inherited from bmptk::graphics::image
	image ()
	default constructor

Public Attributes
const int *	start
	x offset within the photo of all ASCII characters

Public Attributes inherited from bmptk::graphics::font
bool const	fixed
	true iff the font is fixed-width (all characters are the same width)

bool const	proportional
	true iif the font is proportional (width of the characters varies)

const vector	font_char_size
	the size of one character, x is valid for fixed fonts only

Additional Inherited Members
Protected Attributes inherited from bmptk::graphics::image_pixels
vector	size
	the size of the (rectangular) block occupied by the objecy

Detailed Description

a font stored as inline constant data (in ROM)

An inline_font is a photo of a line of characters, stored in in-line data (in ROM). As it is a photo, you can draw it in a frame to see how the characters look.

The common way to use a font is to use it to construct a text object, which can subsequently be drawn.

The inline.py tool can be used to convert a .jpg or .bmp file into the .h and .cpp file for an inline_font. This is likely to be the only way you will instantiate this class.

Definition at line 1779 of file graphics.h.

Constructor & Destructor Documentation

bmptk::graphics::inline_font::inline_font	(	bool	fixed,
		const vector	char_size,
		const int *	start,
		const vector	size,
		const unsigned char *	data
	)

inline

instantiate an inline font

Parameters

fixed	true iif the font has the same size for each character
char_size	the size of a character, x is valid for fixed fonts only
start	the x offset in the photo of each char, -1 for missing chars
size	the size of the photo
data	the photo pixels, see inline_bw_photo

Definition at line 1786 of file graphics.h.

The documentation for this class was generated from the following file:

graphics/graphics.h
