bmptk::chips::hc595< channel > Class Template Reference

interface for a (74)HC595 SPI output shift register More...

#include <hc595.h>

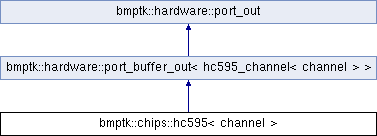

Inheritance diagram for bmptk::chips::hc595< channel >:

Additional Inherited Members
Public Types inherited from bmptk::hardware::port_buffer_out< hc595_channel< channel > >
typedef single_pin< 0 >	pin_0
	pin 0, output-only
typedef single_pin< 1 >	pin_1
	pin 1, output-only
typedef single_pin< 2 >	pin_2
	pin 2, output-only
typedef single_pin< 3 >	pin_3
	pin 3, output-only
typedef single_pin< 4 >	pin_4
	pin 4, output-only
typedef single_pin< 5 >	pin_5
	pin 5, output-only
typedef single_pin< 6 >	pin_6
	pin 6, output-only
typedef single_pin< 7 >	pin_7
	pin 7, output-only
Static Public Member Functions inherited from bmptk::hardware::port_buffer_out< hc595_channel< channel > >
static void	init ()
	initialize the port as output
static void	set (unsigned int x)
	set the curret level on the pins in the port
static int	n_pins ()
	return the number of pins in this port (8)

Detailed Description

template<typename channel>
class bmptk::chips::hc595< channel >

interface for a (74)HC595 SPI output shift register

This class implements a simple interface for a (74)HC595 8-bit SPI output shift register.

The TPIC6C595 chip has a compatible interface, but features open-drain high-current (100 mA) MOSFET outputs.

Definition at line 65 of file hc595.h.

---

The documentation for this class was generated from the following file:

• chips/hc595.h
