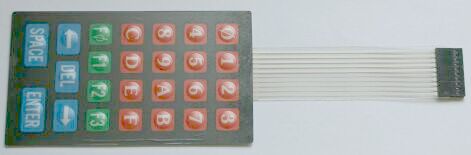

This is a self-adhesive foil keypad with 25 keys. Its size is 70 x 122 x 1 mm (without cable and connector). If the key legend appears to be "dull" you forgot to remove theprotective foil.
connections (pin 1 has a small triangle):
| PIN 1 | PIN 2 | PIN 3 | PIN 4 | PIN 5 | |
| PIN 6 | F3 | F | B | 7 | 3 |
| PIN 7 | F2 | E | A | 6 | 2 |
| PIN 8 | F1 | D | 9 | 5 | 1 |
| PIN 9 | F10 | C | 8 | 4 | 0 |
| PIN 10 | SPACE | ENTER | ==> | DEL | <== |
This is a surplus product. It was obtained from a surplus store, from an inventory or from any other secondary source. You can expect this product to be in good working condition, but it can show signs of being handled, shipped, repackaged etc. The supply of a surplus article can suddenly run out, or the price can change. Get it while it is available.
