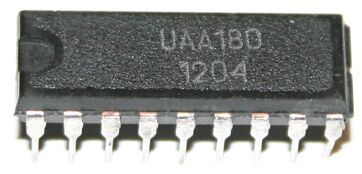

UAA180 12-LED spot/bar-graph driver

<] [>

This chip is a driver for a linear scale 12-LED spot / bar-graph display.

This chip is in a DIP housing. Suitable sockets are DIP-18-L-(5) (low-cost, flat pins) or DIP-18-Q-(5) or (high-quality, round pins)..

DIP-ZIF28 is a ZIF socket that could be used with this chip.

This is a generic component, which means that the component you buy can be from any manufacturer that produces this component. There can be small variations is the exact specifications.
