LPC2124 ARM board, 256Kb Flash, 16Kb RAM

<] [>


Code ARM-P2124
Description LPC2124 ARM board, 256Kb Flash, 16Kb RAM
Price
Documentation ARM P2124
LPC2124
ARM7TDMI manual
ARM assembler quick reference sheet
GNU ARM assembler introduction
I2C (wikipedia)
I2C (philips)
Availability in stock
Add to order
Currently in shopping cart

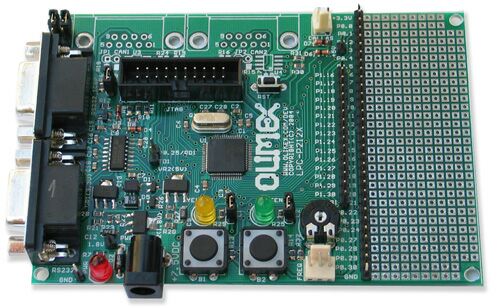

This is a development board with a Philips LPC2124 ARM processor. This chip has 256Kb Flash, 16Kb RAM, an RTC, 4 10-bit ADC inputs, 2 UARTs, I2C, SPI, 2 32bit timers, 7 CCRs, 6 PWM, WDT, 5V tolerant I/O. With the 14.7456 MHz crystal it can run (from RAM) at up to 58.9824 MHz. It has a Wiggler-compatible JTAG interface, a reset button, and a status LED. It has a serial interface that can be used for bootloading with the Philips bootloader, and/or or for serial communcation. The board has a prototype area. The I/O pins of the ARM chip are available on two pinstrips.

The ARM-P2129 has two CAN interfaces but is otherwise the same.

The board requires an external power supply. A 7-9V DC wall-wart will do. The board itself consumes less that 100 mA.

manufacturer: Olimex
